SEAWARD
PRIMETEST 200
The

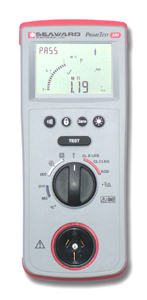

Seaward PrimeTest 200 is a multi-function, battery powered portable
appliance tester. Ideal for portable appliance and RCD testing, it also
provides basic DMM measurements for service & repair applications.
The unit operates in both battery and mains powered modes. When
appliance testing, users can conduct earth continuity, insulation and
polarity tests under battery power, then plug the unit into mains power
to conduct leakage current tests.
The PrimeTest 200 conducts Class I and Class II earth continuity and
insulation tests, and also powers up appliances with an electronic
switch for Leakage Current Tests at 5mA Pass/Fail for Class I and 1mA
Pass/Fail for Class II as per AS3760.
PrimeTest 200 All-In-One Tester Features:
Simple rotary switch test selection
-
LCD with back light
displays Pass/Fail, analog bar graph and measurement readings
-
Leakage current tests
power up appliances with an electronic switch or MOV with Pass/Fail
limits 5mA for Class I and 1mA for Class II
-
Class I leakage test
automatically includes earth continuity test in the sequence
-
Auto power off and
battery life indicator
-
Continuity buzzer
helps for manual probing of a good earth when testing Class I
appliances
-
Socket polarity test
ensures installation safety
-
Supplied complete with
batteries, lead set, IEC lead and protective carry case
